Multi Axis Moving Table CNC
Pade Mill
For Complex Small to Medium Parts

Multi Axis Moving Table CNC

Overview

Technical Data

MODEL

MJ1132F

MJ1138F

Cutting length

3100mm

3700mm

0°cutting thickness

100mm

100mm

45°cutting thickness

70mm

70mm

Main saw rotating speed

3800/5200rpm

3800/5200rpm

Main saw motor

5.5kw

5.5kw

Scoring saw rotating speed

9000rpm

9000rpm

Scoring saw motor

1.1kw

1.1kw

Saw blade tilting

0-45°

0-45°

Dust extraction

φ120mm

φ120mm

Total power

6.6kw

6.6kw

Overall size

3400×3380×1400mm

3400×3380×1400mm

Net weight

1000kg

830kg

Get in touch

If you have any questions about our machines, or interest in setting up a new machining process. Our expert team are more than happy to help.
Multi Axis Moving Table CNC
For Complex Small to Medium Parts

Multi Axis Moving Table CNC
Pade Mill
For Complex Small to Medium Parts

Overview

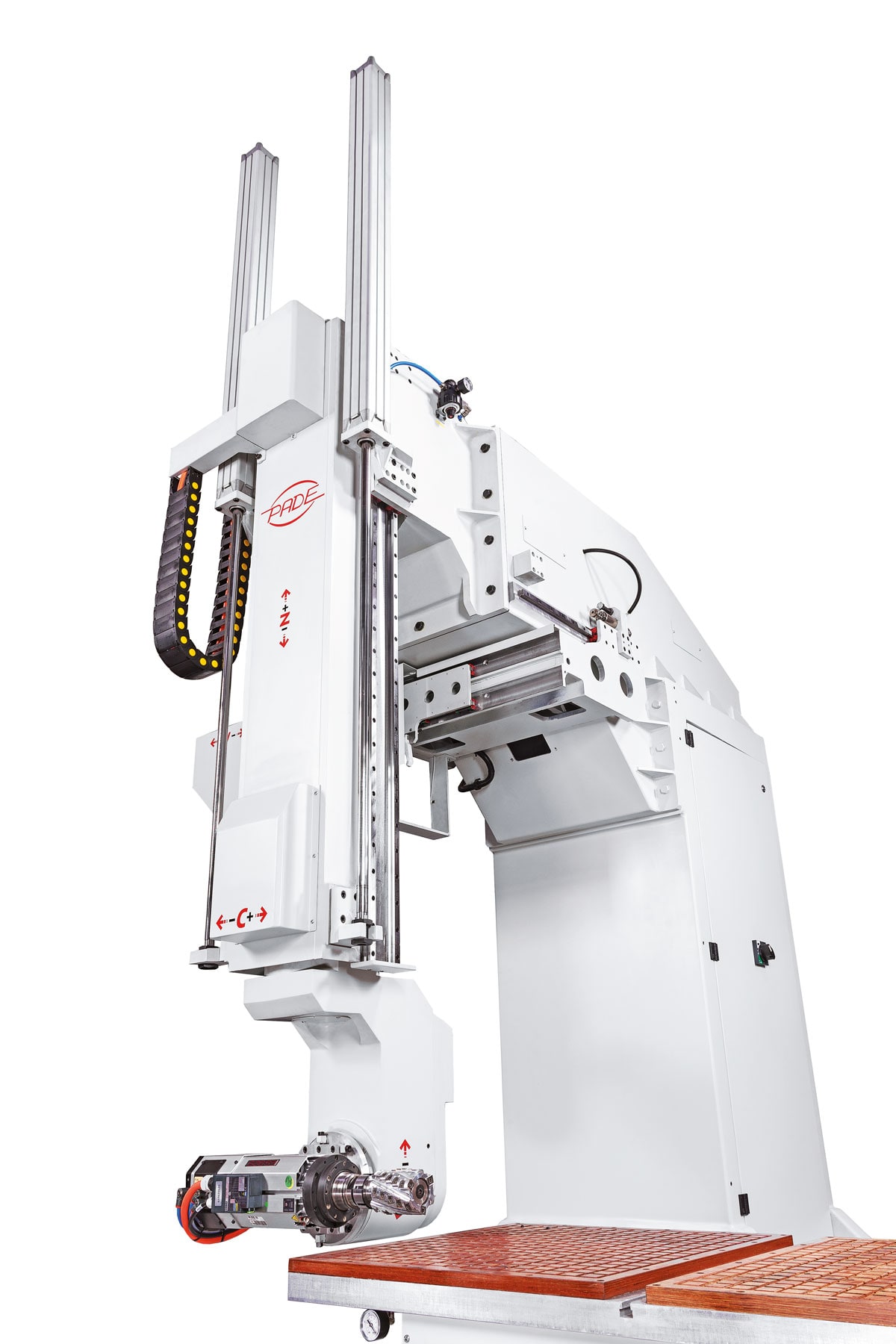

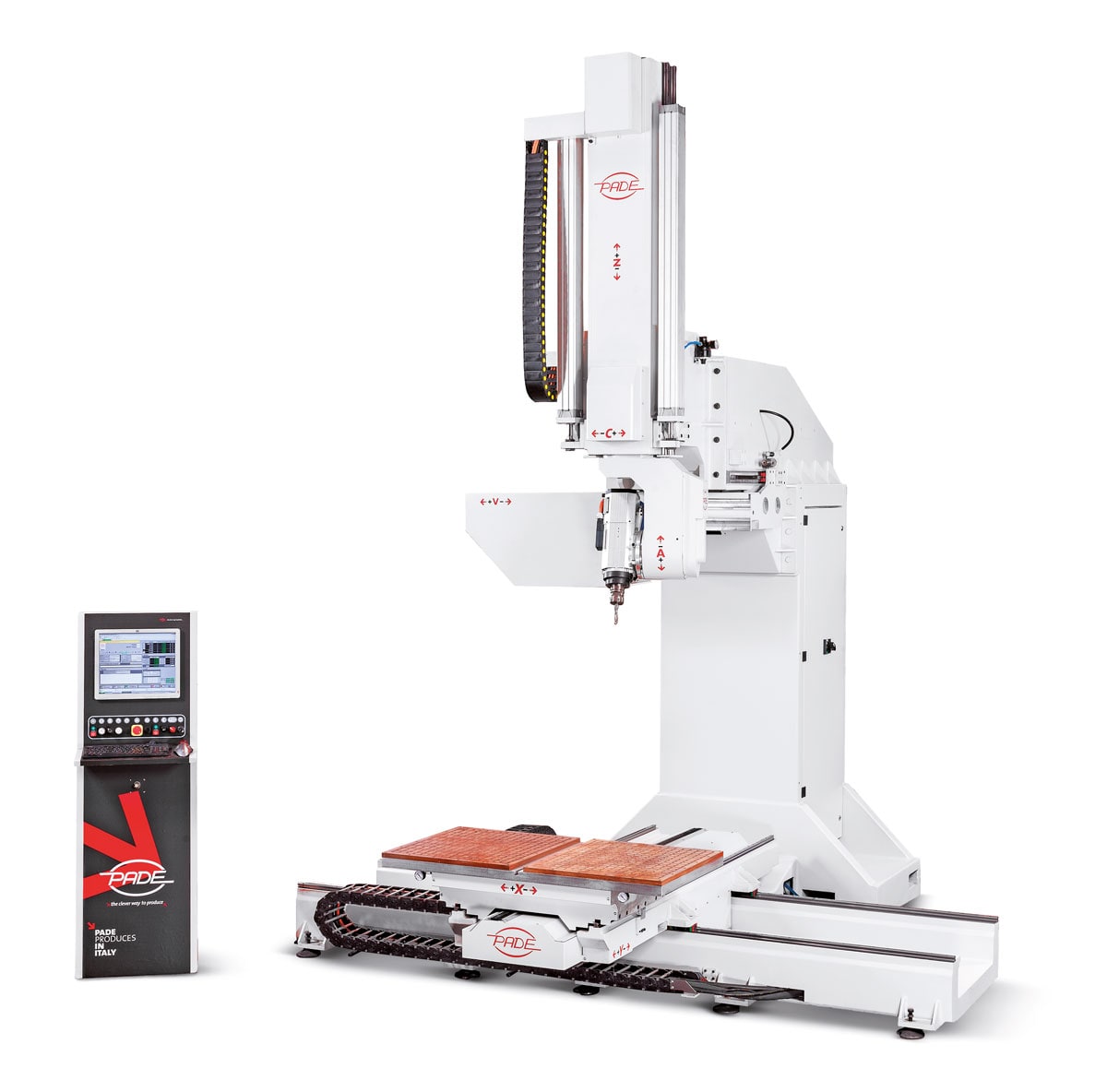

MILL is the 5-axis machining center with fixed column ideal for the execution of complex parts made of solid wood, plywood and non-ferrous materials in general.

The modularity of construction of this center allows for the identification of 3 different models: MILL 7, MILL 9, MILL 11. The main discriminant is the stroke of the Z axis and therefore the useful working height.

MILL 7 and 9 are ideal for processing chair elements, sports items, toys and the like. MILL11 is ideal in processing for the production of molds and processing of plastics and resins such as the construction of bathtubs, furnishing elements, automotive industry.

Main Features

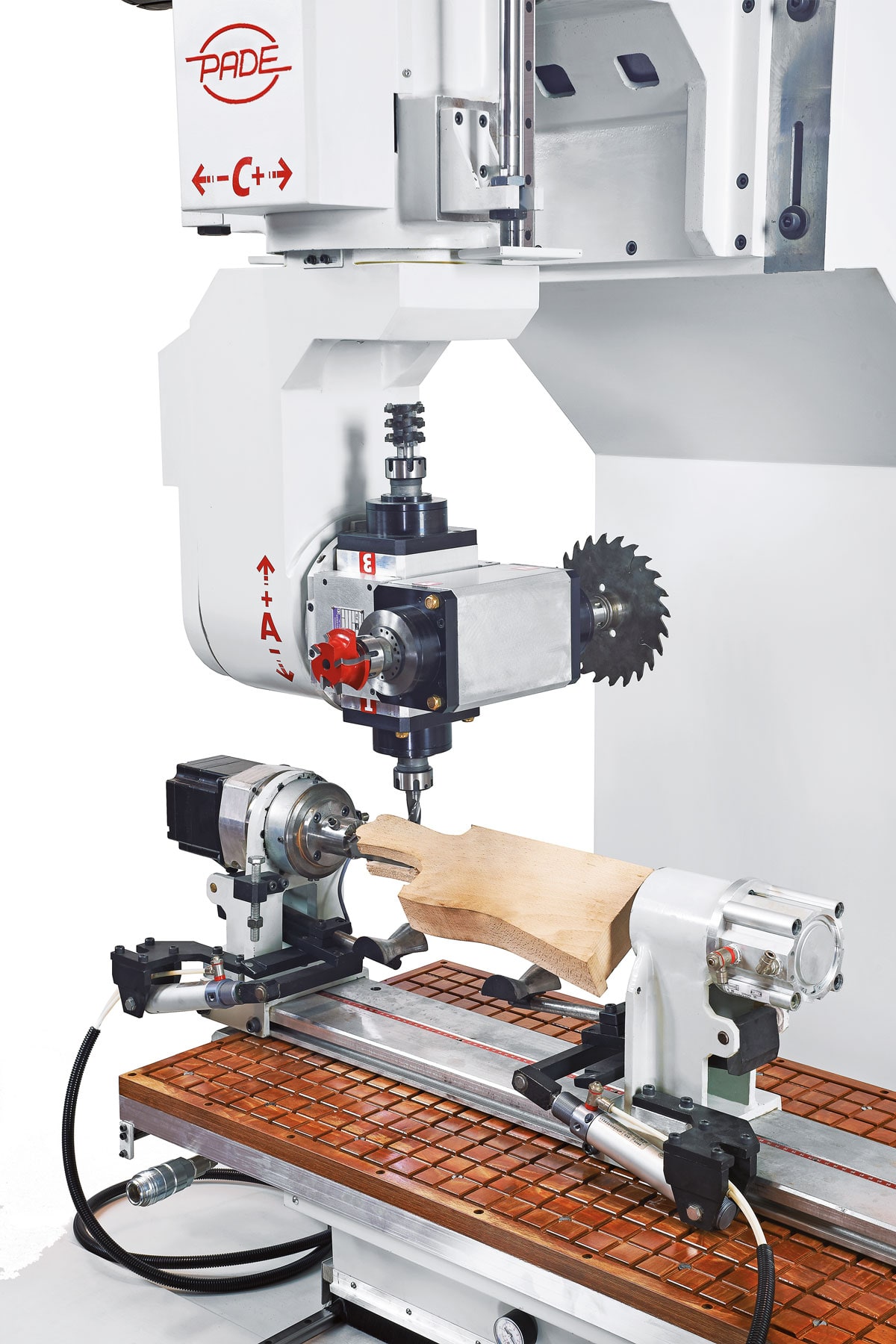

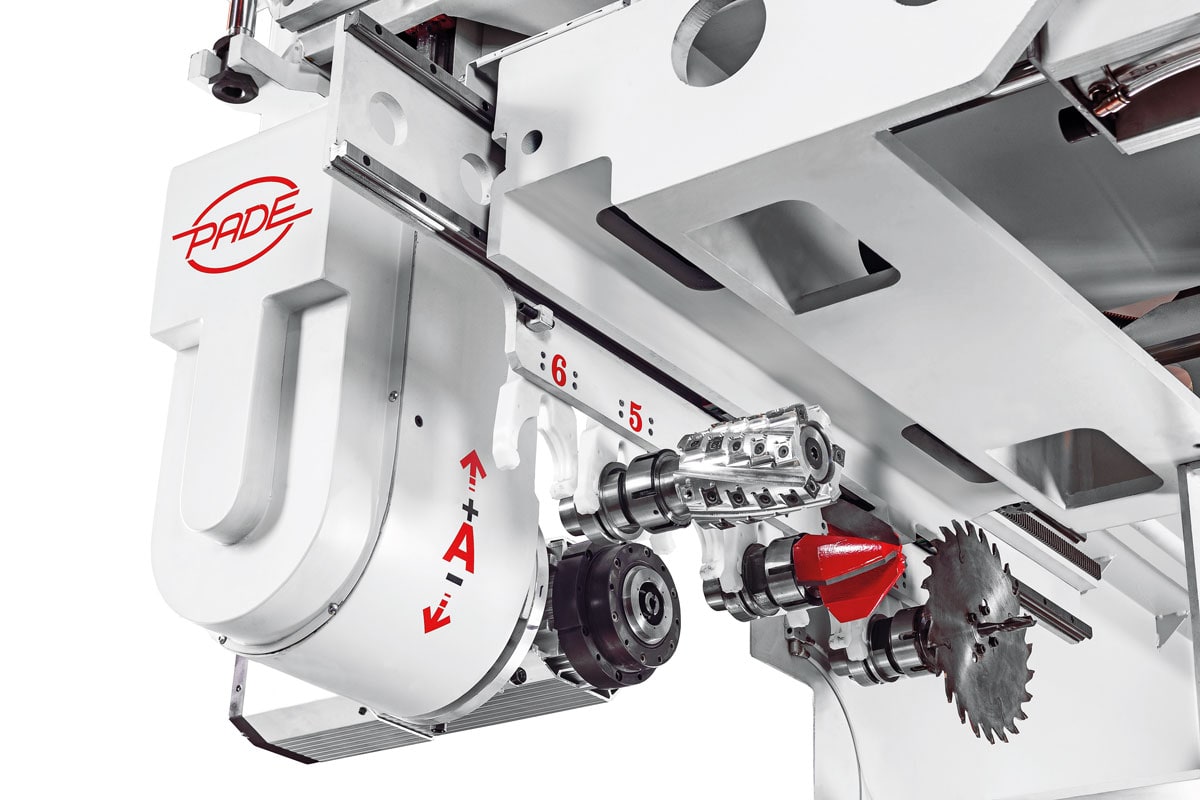

Working heads with the possibility of choosing between 2 and 4 spindles. Available also head T1 with automatic tool changer
Several useful working heights available
Minimum occupation of floor space
With PADEdirect, the customer receives direct assistance via remote connection
E-LAB programming system, automatic trajectories manager
