Mechanical Linear Shaper and Sander

Overview

Technical Data

MODEL

MJ1132F

MJ1138F

Cutting length

3100mm

3700mm

0°cutting thickness

100mm

100mm

45°cutting thickness

70mm

70mm

Main saw rotating speed

3800/5200rpm

3800/5200rpm

Main saw motor

5.5kw

5.5kw

Scoring saw rotating speed

9000rpm

9000rpm

Scoring saw motor

1.1kw

1.1kw

Saw blade tilting

0-45°

0-45°

Dust extraction

φ120mm

φ120mm

Total power

6.6kw

6.6kw

Overall size

3400×3380×1400mm

3400×3380×1400mm

Net weight

1000kg

830kg

Get in touch

If you have any questions about our machines, or interest in setting up a new machining process. Our expert team are more than happy to help.
Mechanical Linear Shaper and Sander

Mechanical Linear Shaper and Sander
Pade Uinze

Overview

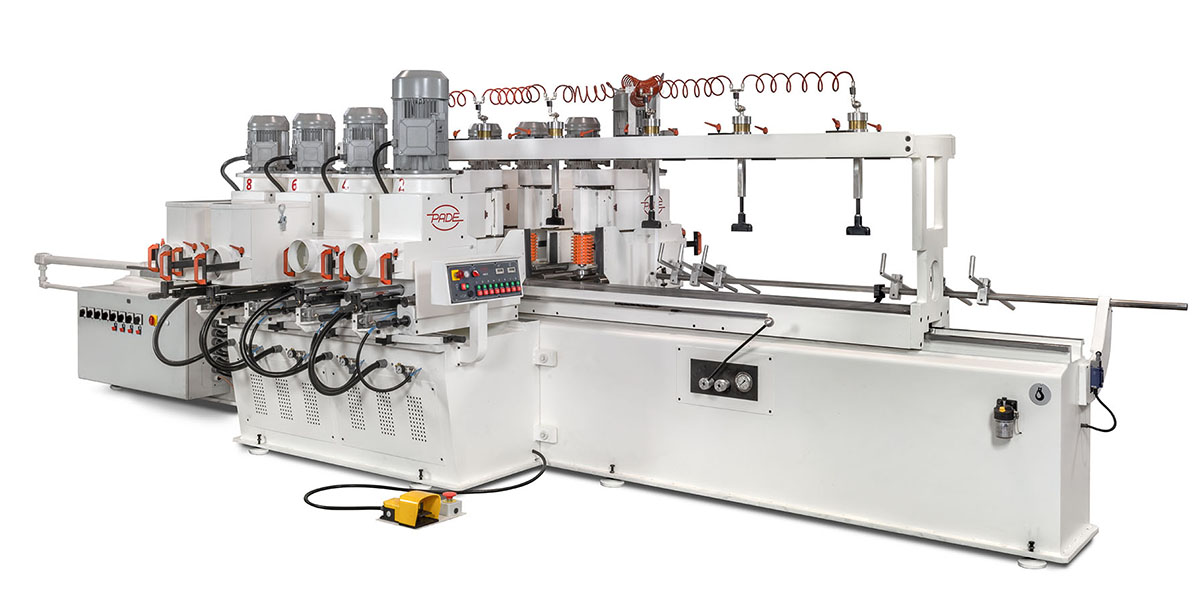

The linear shaping and sanding machines, series UINZE, represent the ideal solution for the machining of solid wood components.

Their versatility allows their application in several fields such as skis, snowboards, rustic balconies, furniture frames, as well as for elements of chairs, tables, living rooms, etc.

The following machine versions are manufactured:
– UINZE 2T, with 2 shaping units;
– UINZE 4T, with 4 shaping units;
– UINZE 2 + 2T tools, with 2 shaping units and 2 reversible shaping / sanding units;
– UINZE 6T, with 2 shaping units and 4 reversible shaping / sanding units;
– UINZE 8T, with 4 shaping units and 4 sanding units;

Main Features

Heads tiling up to 10 ° for execution of round ends
Oscillation system of sanding unit completely mechanical
Manual and automatic carriage speed adjustment

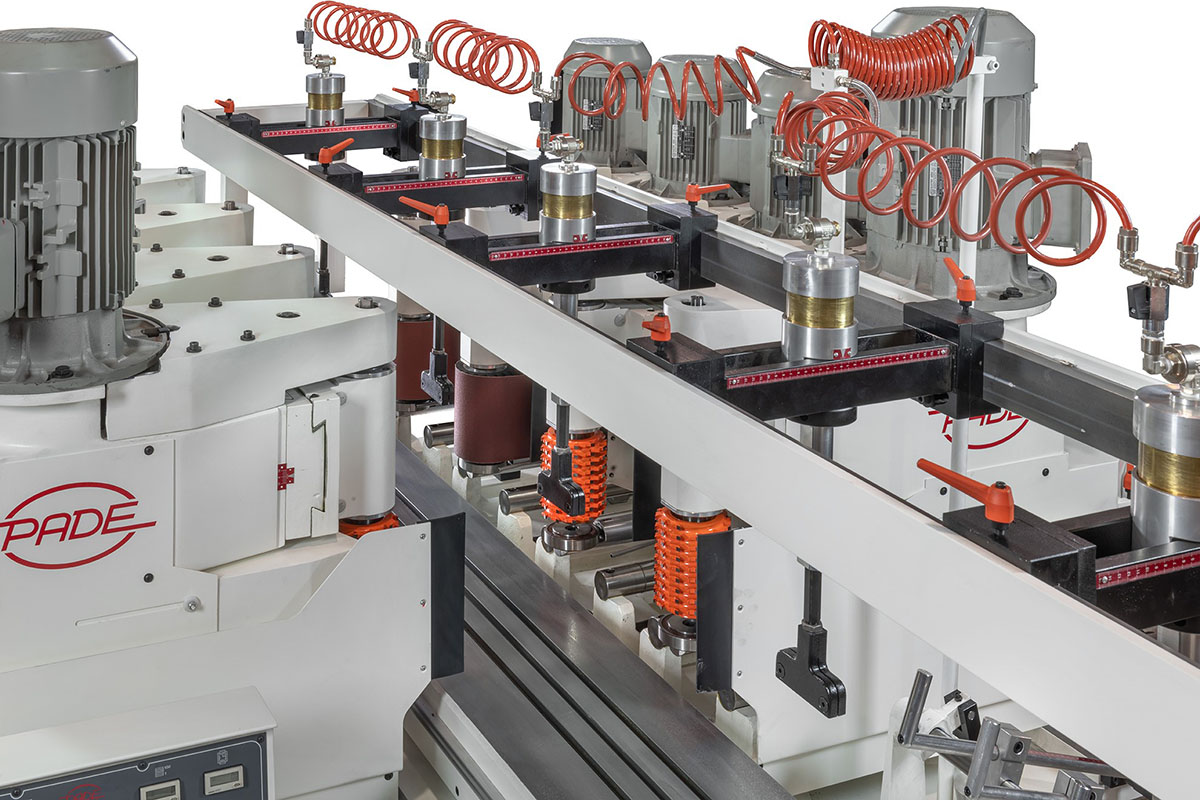

Clamping cylinders with hexagonal shaft and special anti-rotation system, adjustable and tiltable
One side opening for easy tool chaning operation (available on UINZE 6T and UINZE 8T)
