| WDC 3000 | Conveyor module size 3000×600×300mm | |
| Working Height | 300mm (to the top of the roller) | |
| Roller Diameter | 60mm | |
| Conveyor Frame | 1.5mm thickness formed mild steel, hot-dip galvanized | |
| Roller Cylinder | Φ 60 ×1.5mm hot-dip galvanized pip | |
| Inner shaft | Φ12mm cold-drawn steel; bearings: 6201 | |
| Support legs | 50×30×2mm square tube, the feet are adjustable | |
| Roller Pitch | 167mm | |
| Loading Capacity | 1000kg | |
| WDC End Stop | ||
| Baffle plate | 5mm A3 steel plate, coated in metallic yellow warning paint | |
| Axle lugs | 3mm thick steel plate stamping, left and right paired | |
| Inner Shaft | Φ12mm cold-drawn round steel |

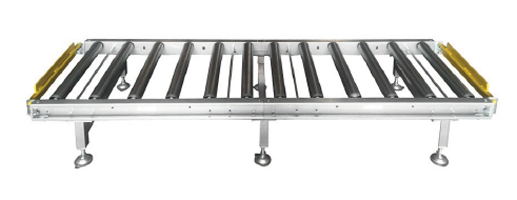

The WDC range of gravity roller conveyors are of a modular design, allowing for varied lengths and widths to be combined to meet the requirements for most factories. Made from durable high-quality materials, ensures robust rollers and frames to suit many applications. Produced in the set module lengths of 1000, 2000, 2500 & 3000mm and widths of 600, 800 & 1000mm.
| WDC 3000 | Conveyor module size 3000×600×300mm | |
| Working Height | 300mm (to the top of the roller) | |
| Roller Diameter | 60mm | |
| Conveyor Frame | 1.5mm thickness formed mild steel, hot-dip galvanized | |
| Roller Cylinder | Φ 60 ×1.5mm hot-dip galvanized pip | |
| Inner shaft | Φ12mm cold-drawn steel; bearings: 6201 | |
| Support legs | 50×30×2mm square tube, the feet are adjustable | |
| Roller Pitch | 167mm | |
| Loading Capacity | 1000kg | |
| WDC End Stop | ||
| Baffle plate | 5mm A3 steel plate, coated in metallic yellow warning paint | |
| Axle lugs | 3mm thick steel plate stamping, left and right paired | |
| Inner Shaft | Φ12mm cold-drawn round steel |
