| MODEL | MJ1132F | MJ1138F |
| Cutting length | 3100mm | 3700mm |
| 0°cutting thickness | 100mm | 100mm |
| 45°cutting thickness | 70mm | 70mm |
| Main saw rotating speed | 3800/5200rpm | 3800/5200rpm |
| Main saw motor | 5.5kw | 5.5kw |
| Scoring saw rotating speed | 9000rpm | 9000rpm |
| Scoring saw motor | 1.1kw | 1.1kw |
| Saw blade tilting | 0-45° | 0-45° |
| Dust extraction | φ120mm | φ120mm |
| Total power | 6.6kw | 6.6kw |
| Overall size | 3400×3380×1400mm | 3400×3380×1400mm |
| Net weight | 1000kg | 830kg |

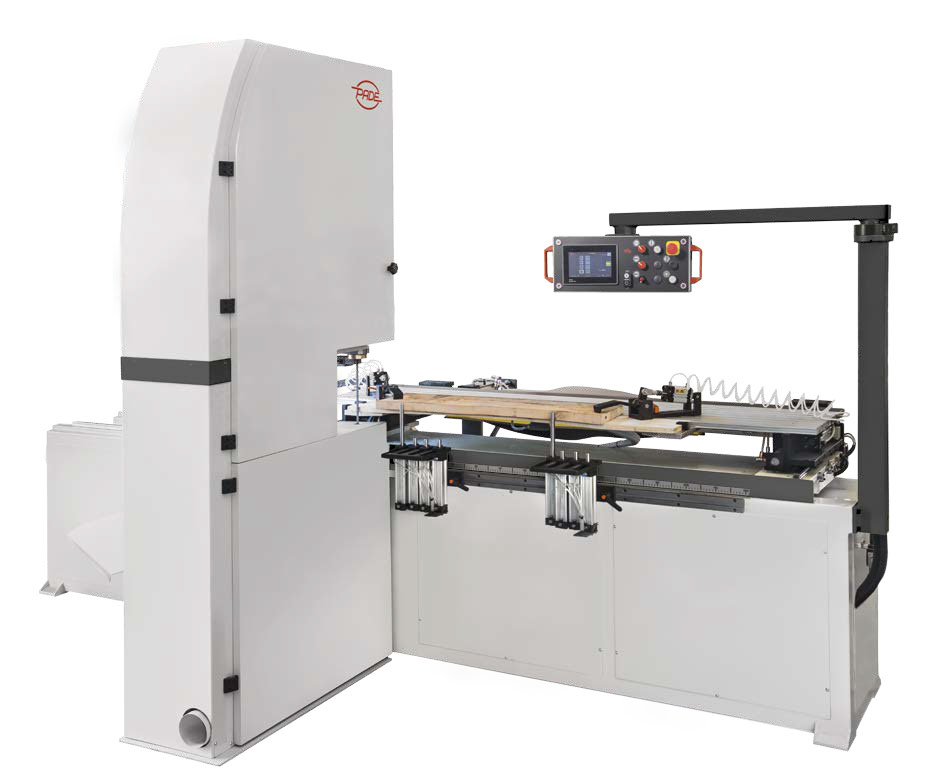

The rotation of the blade at +/- 45 ° and the sturdiness of construction allow the execution of high quality shaped pieces.

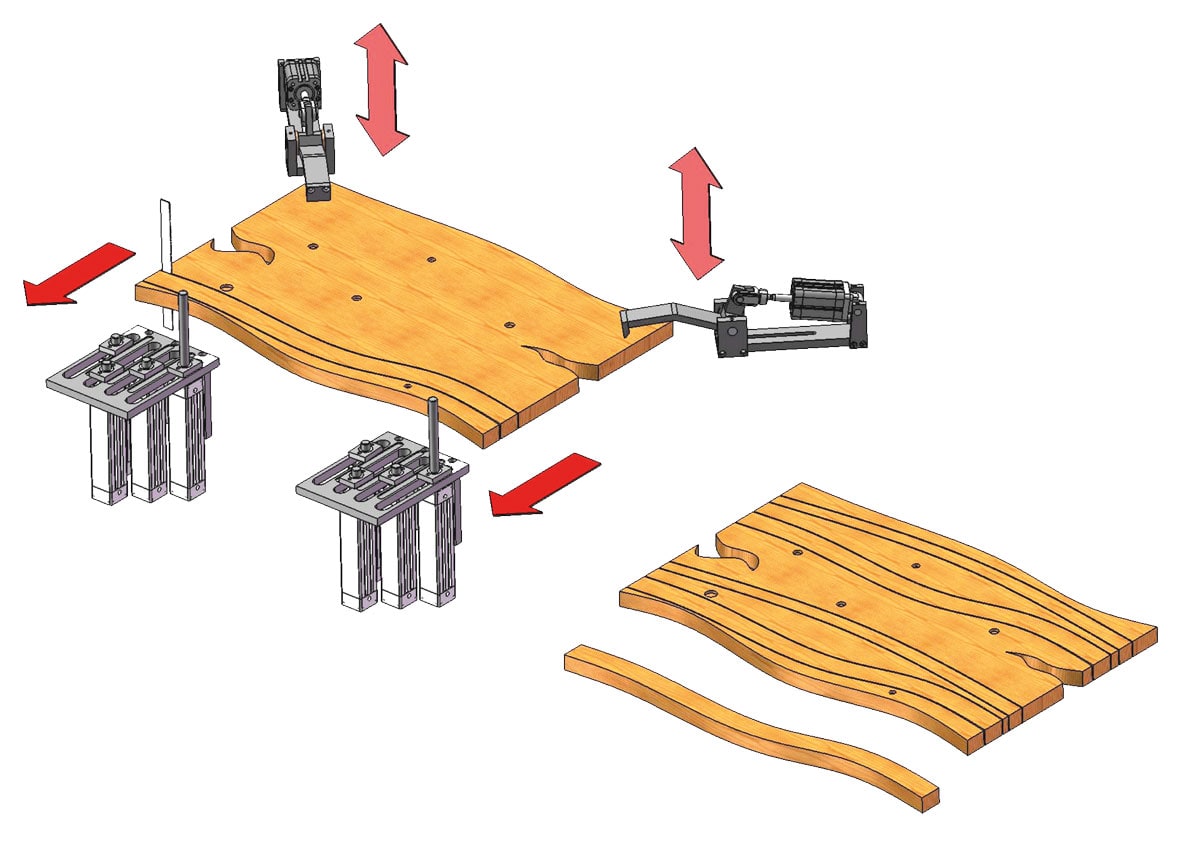

QUATER is particularly suitable for cutting solid wood
boards with irregular shapes and defects.
A simple machine to use with working cycles that are easy to create thanks to the advanced PLC the machine is supplied with.
