CNC Bandsaw with Electrospindle
Pade Pluris

CNC Bandsaw with Electrospindle

Overview

Technical Data

MODEL

MJ1132F

MJ1138F

Cutting length

3100mm

3700mm

0°cutting thickness

100mm

100mm

45°cutting thickness

70mm

70mm

Main saw rotating speed

3800/5200rpm

3800/5200rpm

Main saw motor

5.5kw

5.5kw

Scoring saw rotating speed

9000rpm

9000rpm

Scoring saw motor

1.1kw

1.1kw

Saw blade tilting

0-45°

0-45°

Dust extraction

φ120mm

φ120mm

Total power

6.6kw

6.6kw

Overall size

3400×3380×1400mm

3400×3380×1400mm

Net weight

1000kg

830kg

Get in touch

If you have any questions about our machines, or interest in setting up a new machining process. Our expert team are more than happy to help.
Contact us
CNC Bandsaw with Electrospindle

CNC Bandsaw with Electrospindle
Pade Pluris

Gallery Image
Gallery Image
Gallery Image
Gallery Image
Gallery Image

Overview

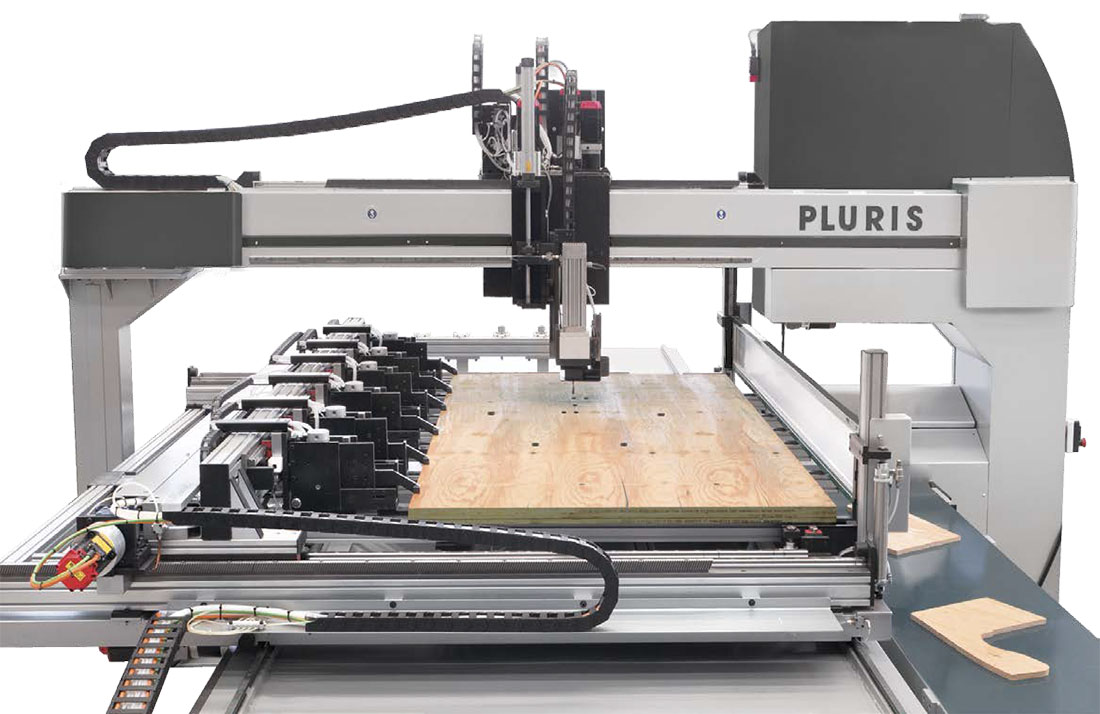

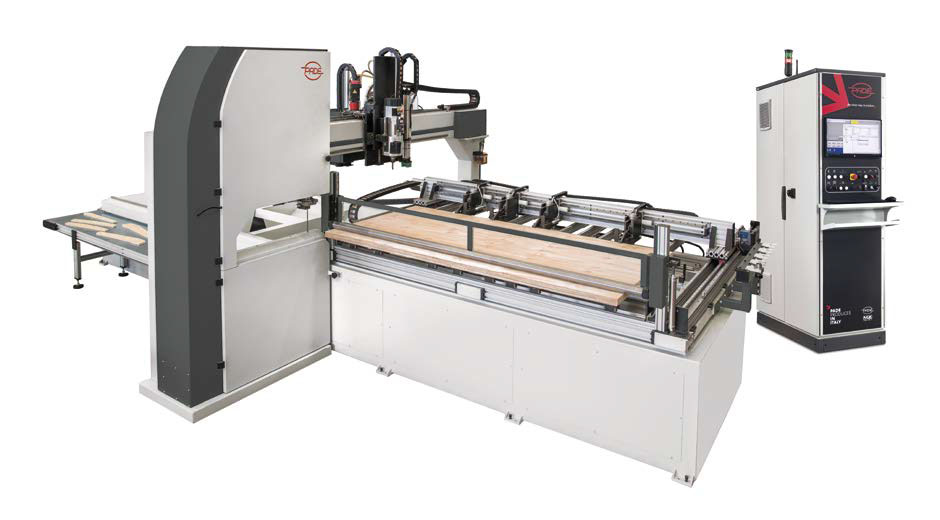

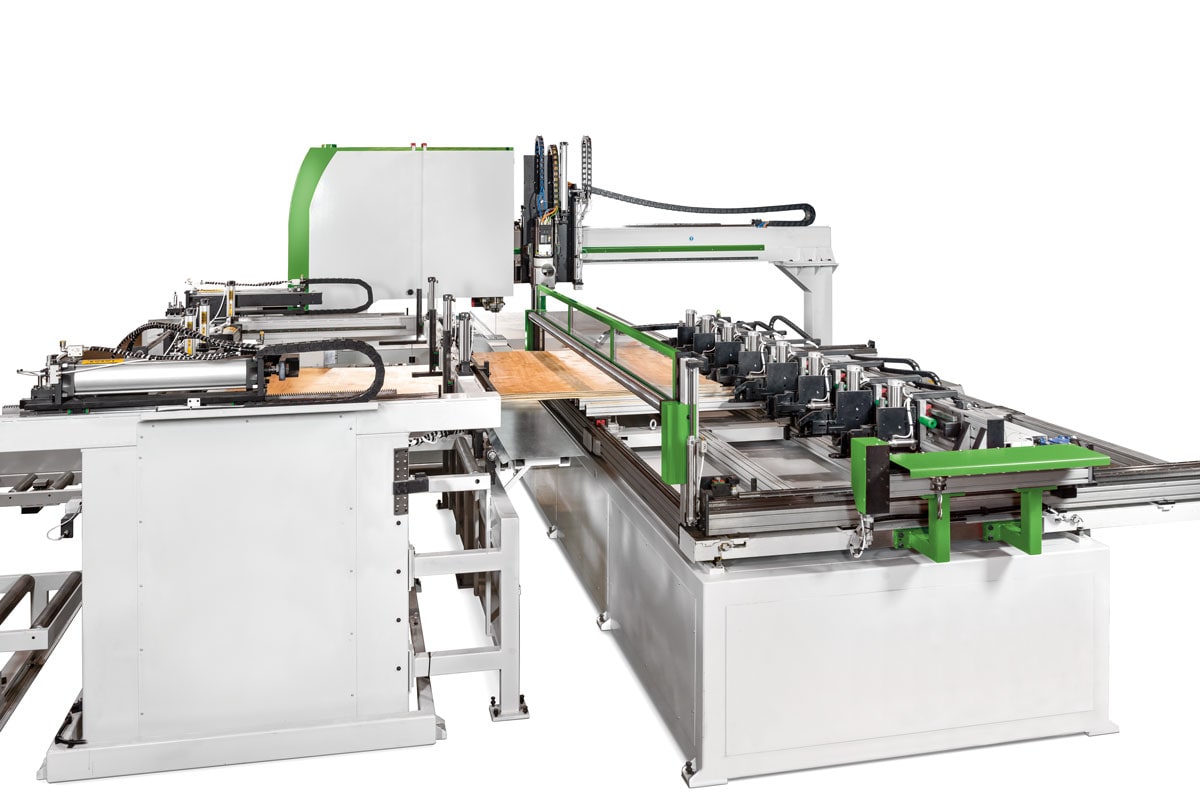

PLURIS is an extremely flexible, fast and precise multi-axes machining centre.

The machine is equipped with a very solid CNC band-saw, a 3 axes high speed electro-spindle and other working units.
It may work as our traditional CNC band saws, using the blade only, or as a 3-axis machining centre using the electro-spindle only, or all available units in the same working program.

PLURIS may be used as a dedicated “nesting” system in the production of components for upholstered furniture where complicated geometric shapes are required.

Enquire

Main Features

❯ CNC bandsaw with blade twisting +/-90°

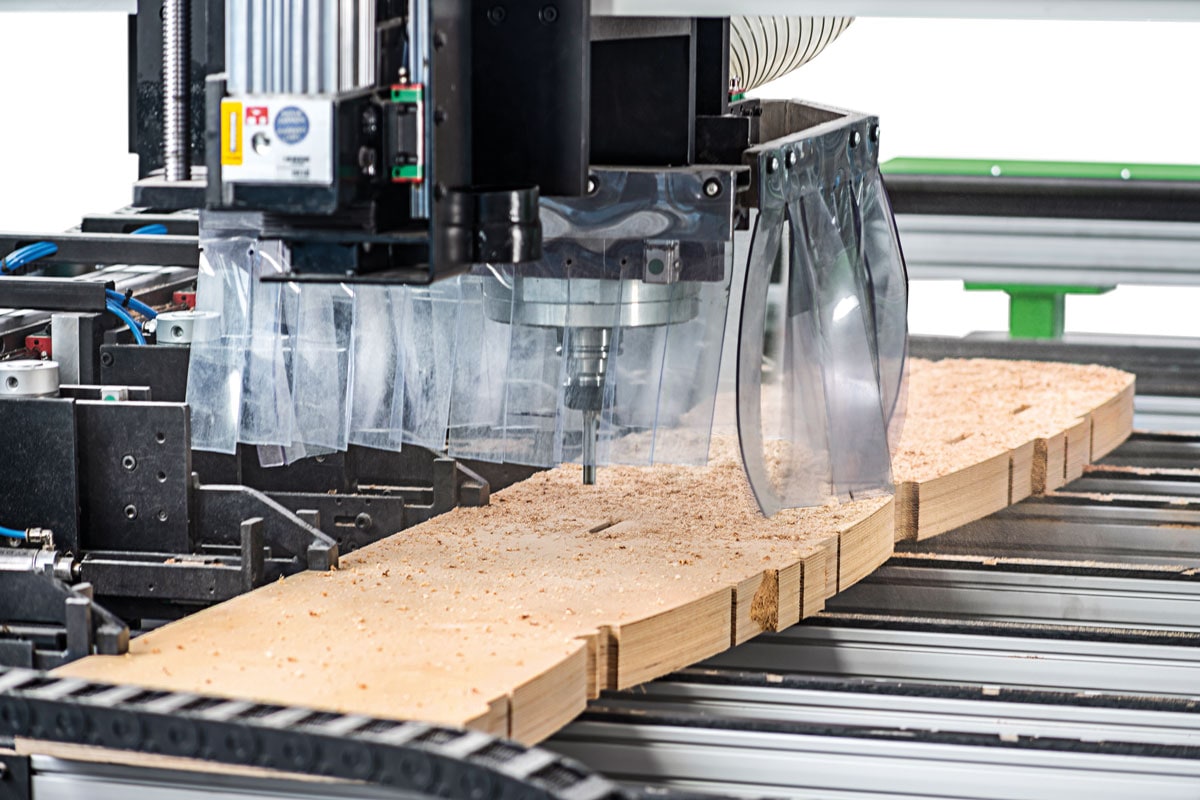

❯ Electro-spindle of various powers for milling stacked panels
❯ Additional units: multi-spindle drilling unit and circular saw

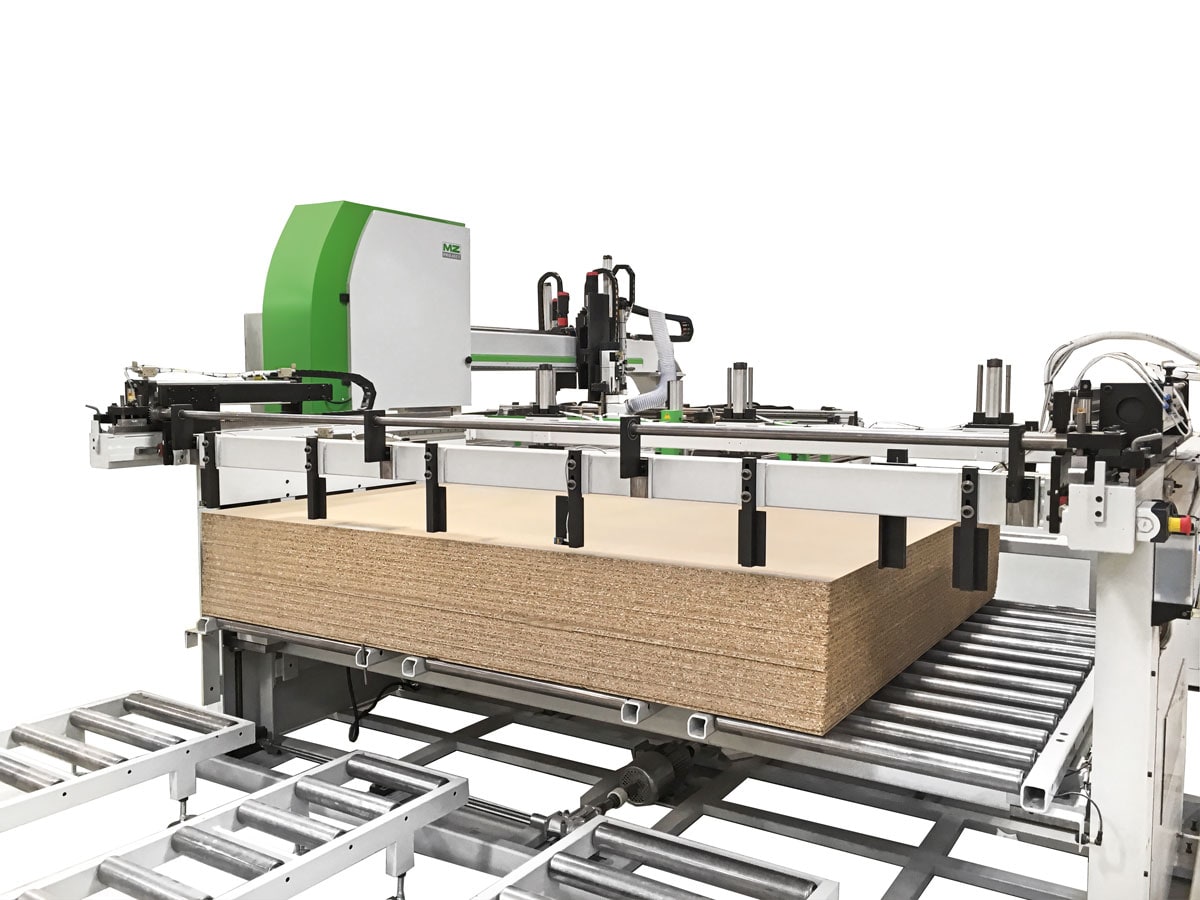

❯ As option is available an automatic loader with side panel aligner for loading into the machine.
❯ SIMPLEX simulation, programming and anti-collision software
